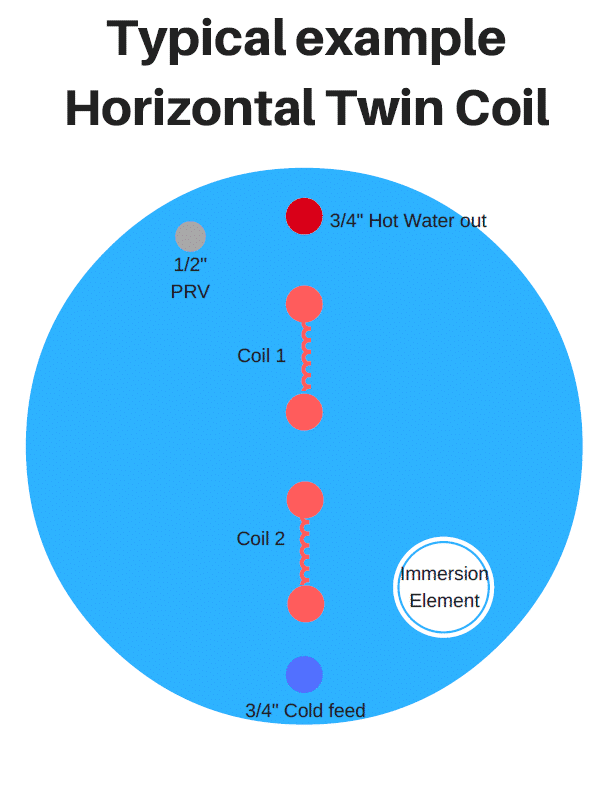

Horizontal Twin Coil Calorifier – Grade 1
- Working pressure = 35 psi (tested to 5 bar)
- 22mm coil
- 2 1/4 immersion heater boss fitted as standard (position can be specified)
Note: Each cylinder comes with 1″ spray foam insulation (not included in dimensions below).
Dimensions/Options:
- 24″ x 12″ (609mm x 305mm), Capacity: 7.5 Gallons (34 ltrs)
- 32″ x 12″ (812mm x 305mm), Capacity: 10 Gallons (45.5 ltrs)
- 24″ x 14″ (609mm x 355mm), Capacity: 10 Gallons (45.5 ltrs)
- 32″ x 14″ (812mm x 355mm), Capacity: 14 Gallons (63.6 ltrs)
As our calorifiers are “made to order” and not a stock item there is typically 14 days from order for delivery.
For an extra high recovery coil to be supplied as one of the coils the cost is an additional £70.00 – please contact us on 01663 734800 to order.
Extra high recovery coils are strongly recommended with Kabola Calorifier Control boilers (B Series, Compact, HR Series & KB Series).
CALORIFIERS MADE TO OWN SPECIFICATIONS (PRICE UPON REQUEST).
