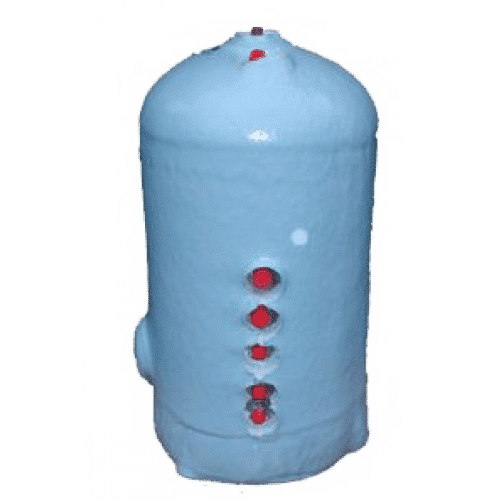

Vertical Twin Coil Calorifier

Vertical TWIN Coil Calorifier – Grade 1

• Working pressure =  35 psi (tested to 5 bar)
• 22mm coil
• 2 1/4 immersion heater boss fitted as standard (position can be specified)

Note: Each cylinder comes with 22mm of spray foam insulation (not included in dimensions below).

Dimensions/Options:

• 24″ x 12″  (609mm x 305mm), Capacity: 7.5 Gallons  (34 ltrs)
• 32″ x 12″  (812mm x 305mm), Capacity: 10 Gallons  (45.5 ltrs)
• 36″ x 12″  (914mm x 305mm), Capacity: 12 Gallons  (54.5 ltrs)
• 16″ x 14″  (406mm x 355mm), Capacity: 6 Gallons  (27.3 ltrs)
• 30″ x 14″  (763mm x 355mm), Capacity: 13 Gallons  (59 ltrs)
• 18″ x 16″  (457mm x 406mm), Capacity: 10 Gallons  (45.5 ltrs)
• 24″ x 16″  (457mm x 457mm), Capacity: 11.5 Gallons  (52.3 ltrs)
• 24″ x 18″  (609mm x 457mm), Capacity: 17.5 Gallons  (77.3 ltrs)
• 36″ x 18″  (914mm x 457mm), Capacity: 23 Gallons  (104.5 ltrs)

For an extra high recovery coil to be supplied as one of the coils the cost is an additional, please contact us on 01663 734800 to order.

Extra high recovery coils are strongly recommended with Kabola Calorifier Control boilers (B Series, Compact, HR Series & KB Series).

As our calorifiers are “made to order” and not a stock item there is typically 14 days from order for delivery.

CALORIFIERS MADE TO OWN SPECIFICATIONS (PRICE UPON REQUEST).
